Multi-function grinder

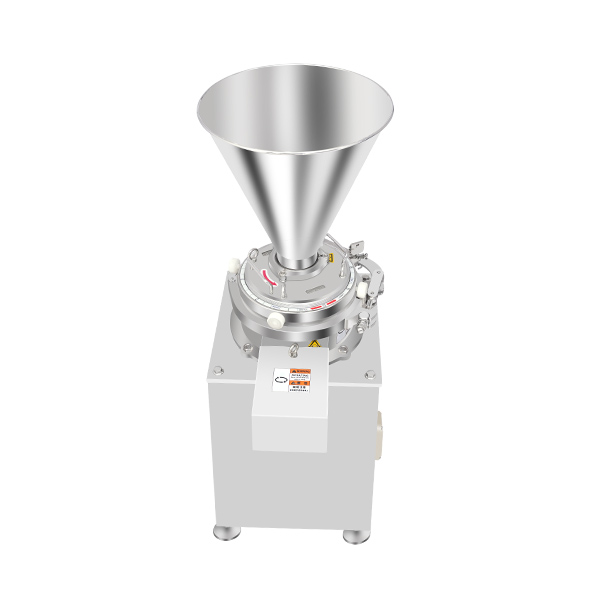

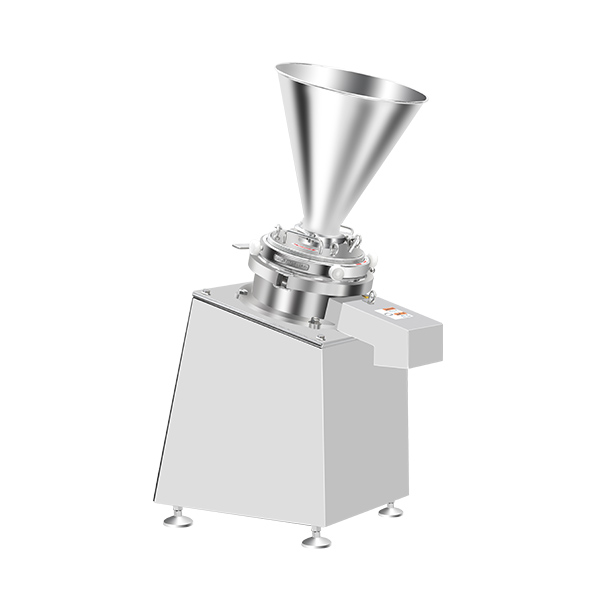

Multi-function grinderRD1-15

1 set of 5 functions.

Transformer control panel standard equipment. Most suitable for research and development, a small number of varieties. It can be simple and practical, with high performance.

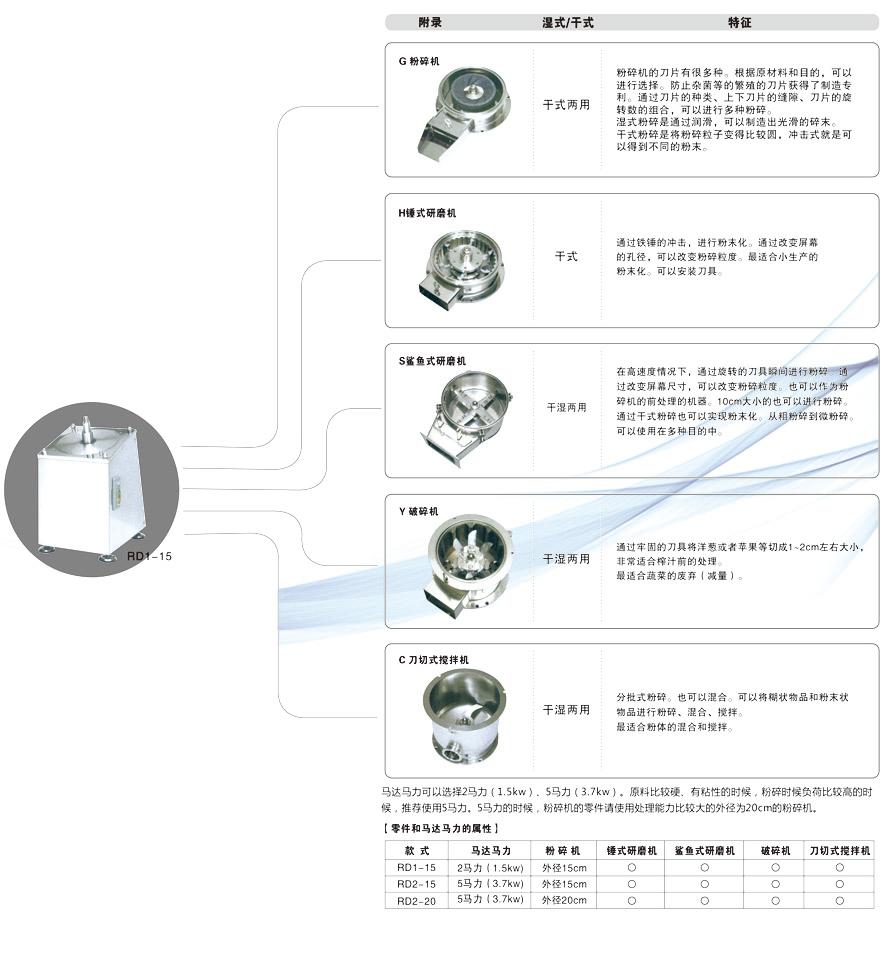

The multi-function grinder can perform five kinds of crushing, and the crushing type is selected according to the purpose and use. It has obtained a patent and is a crusher that other companies do not have. Considering the cleanliness, the multi-function grinder that can exchange parts (patented) has won praise from customers. Each comminuted part (part) can be easily disassembled and assembled by a woman, and the detachable washing tub can be cleaned. In addition, the control panel is placed with a transformer inside, so the number of revolutions can be changed to 600~3600rpm. On the control panel options, a touch screen and a dedicated aluminum profile bracket are also provided. The pulverization characteristics of the five parts are shown in the figure below.

G Crusher

There are various types of blades for the crusher. Selection can be made according to raw materials and purposes. The blades designed to prevent the propagation of miscellaneous bacteria, etc., have obtained manufacturing patents. A variety of crushing operations can be achieved through combinations of blade types, gaps between upper and lower blades, and blade rotation speeds.Dry and wet dual-purpose

Wet crushing can produce smooth crushed particles through lubrication. Dry crushing results in relatively round crushed particles, while impact crushing can yield powders of different characteristics.

H Hammer

MillIt pulverizes materials through the impact of hammers. The crushing particle size can be adjusted by changing the aperture of the screen. It is most suitable for small-scale production pulverization. Cutting tools can be installed.Dry-only

S Shark-type

GrinderIt crushes materials instantly with high-speed rotating tools. The crushing particle size can be adjusted by changing the screen size. It can also be used as a pre-processing machine for crushers. It can crush materials up to 10cm in size.Dry and wet dual-purpose

It can also achieve pulverization through dry crushing, ranging from coarse crushing to fine grinding, and can be used for multiple purposes.

RD1-15Dry and wet dual-purpose

It can cut ingredients such as onions or apples into pieces of approximately 1-2cm using sturdy tools, making it ideal for pre-juicing processing. It is also highly suitable for vegetable waste reduction.

Y CrusherDry and wet dual-purpose

It can cut ingredients such as onions or apples into pieces of approximately 1-2cm with sturdy tools, making it ideal for pre-juicing processing. It is also highly suitable for vegetable waste reduction.

C Knife-cut MixerDry and wet dual-purpose

It features batch-type crushing and can also perform mixing. It can crush, mix, and stir pasty and powdery materials, making it ideal for mixing and stirring powders.

Motor horsepower options: 2HP (1.5kW) and 5HP (3.7kW). For hard or sticky raw materials, or when crushing involves high loads, 5HP is recommended. For the 5HP motor, please use a crusher with a larger processing capacity and an outer diameter of 20cm.

【Attributes of Parts and Motor Horsepower】

Model Motor Horsepower Crusher (Outer Diameter)

RD1-15 2HP (1.5kW)    15cm

RD2-15 5HP (3.7kW)    15cm

RD2-205HP (3.7kW)     20cm
