Super Grindstones

Introduction:	Crushing is done by the equipment alone, eliminating the need for cyclones, bag filters, blowers, etc., highly effective in reducing capital investment.
Application:	Chemicals, food, medicine
Material:	Powder material, granular material

Details
Application
Parameter
Characteristic

Equipment introduction

Domestic can manufacture ultrafine stone disk grinding ceramic lining enterprises only our company 1! Exclusive supply battery industry!

PATENT NO. CN108452903A

The company's high density and no porosity stone mortar

Sharpness · Superior ability to FAM

Prevent bacteria from entering and breeding

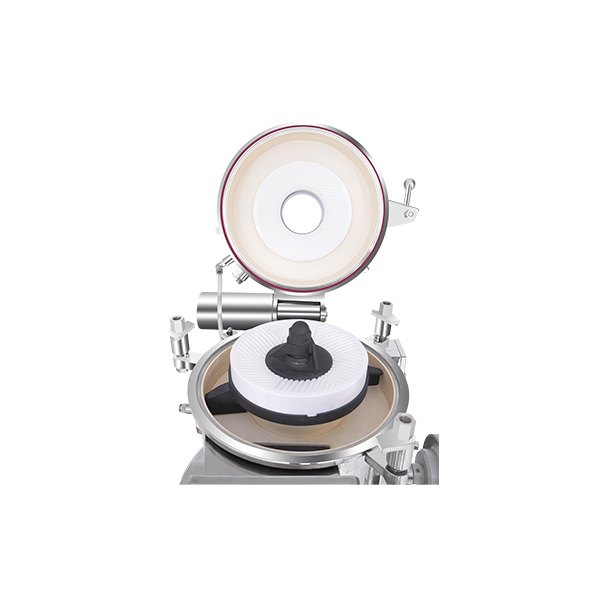

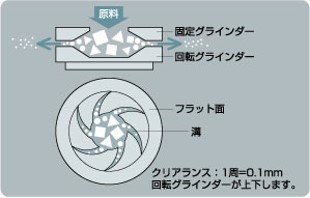

The upper and lower sets of ceramic millstones are used, with the upper plate fixed and the lower plate rotating at high speed

The resulting kneading, shearing, declustering, and shattering effect is achieved

ØAll raw materials are cut, ground, micronized, dispersed, and emulsified

ØAll raw materials are cut, ground, micronized, dispersed, emulsified, and crushed. The particle size of the materials is obtained by adjusting the spacing between the grinding discs

ØCrushing through strong impact, centrifugal force, and shear force

ØEven during operation, the distance between grinding discs can be adjusted

Application

Chemicals: LIB battery raw materials, lithium hydroxide, graphite, nickel oxide, metal oxide, etc

Pharmaceutical products: herbal materials, traditional Chinese medicine, lychee ointment, etc

Food: corn flour, sesame, soybean, vegetable, salt, bean paste, sauce, raw materials, etc

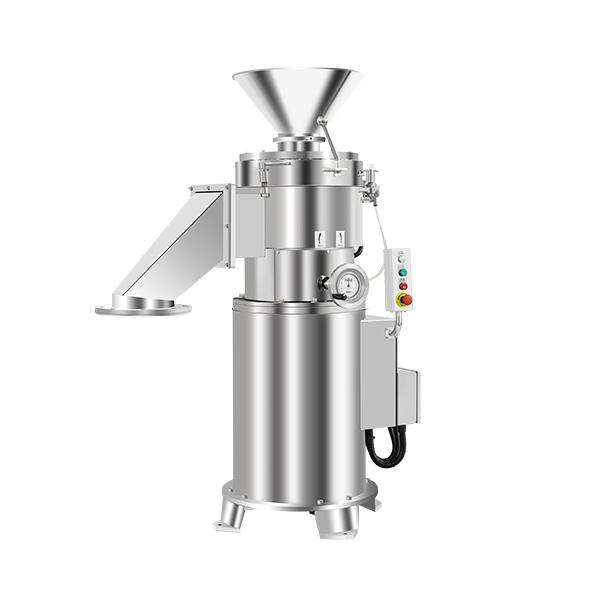

Equipment name: Ultrafine stone disc grinding

Purpose: For ultrafine crushing of raw materials

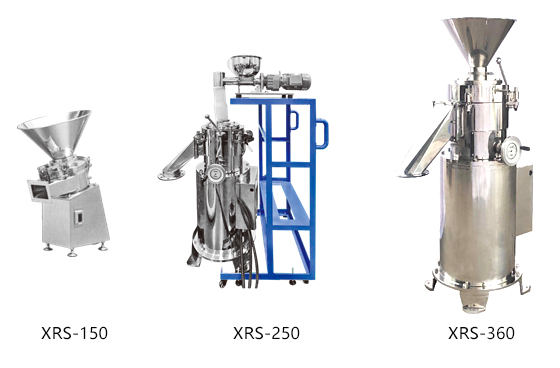

Model: XRS-150 XRS-250 XRS-360

Grinding disc diameter: ø150mm ø250mm ø360mm

Grinding Machine Specifications
Model	XRS-150	XRS-250	XRS-360
Grinding disc speed	1,800 r/min	3,000 r/min	3,600 r/min
Motor	3.7 kW	11 kW	22 kW
Grinding disc size	Ø150 mm	Ø250 mm	Ø360 mm
Machine dimensions	W560 × L350 × H950 mm	W890 × L400 × H1300 mm	W700 × L960 × H1800 mm
Processing capacity	30 – 100 kg	100 – 1000 kg	300 – 2500 kg
Equipment weight	120 kg	250 kg	400 kg

❖ CAM type circuit breaker, double safety guarantee

❖ Easy to clean, easy to disassemble, easy to maintain

❖ Novel design, easy maintenance and operation, low noise, high crushing rate

❖ Reliable performance and high security

❖ Comply with CE · KCs · UL · CCC safety standard design

❖ The crushing cavity and the upper cover are provided with a jacket

❖ There are three types of bearing sleeves available for high temperature, high pressure, and 24-hour operation

❖ Can be used in the laboratory, even if a small amount of raw materials are used for experiments, it can be 100% recycled

❖ Dual use of dry powder and wet raw materials (with additional sealing components)
